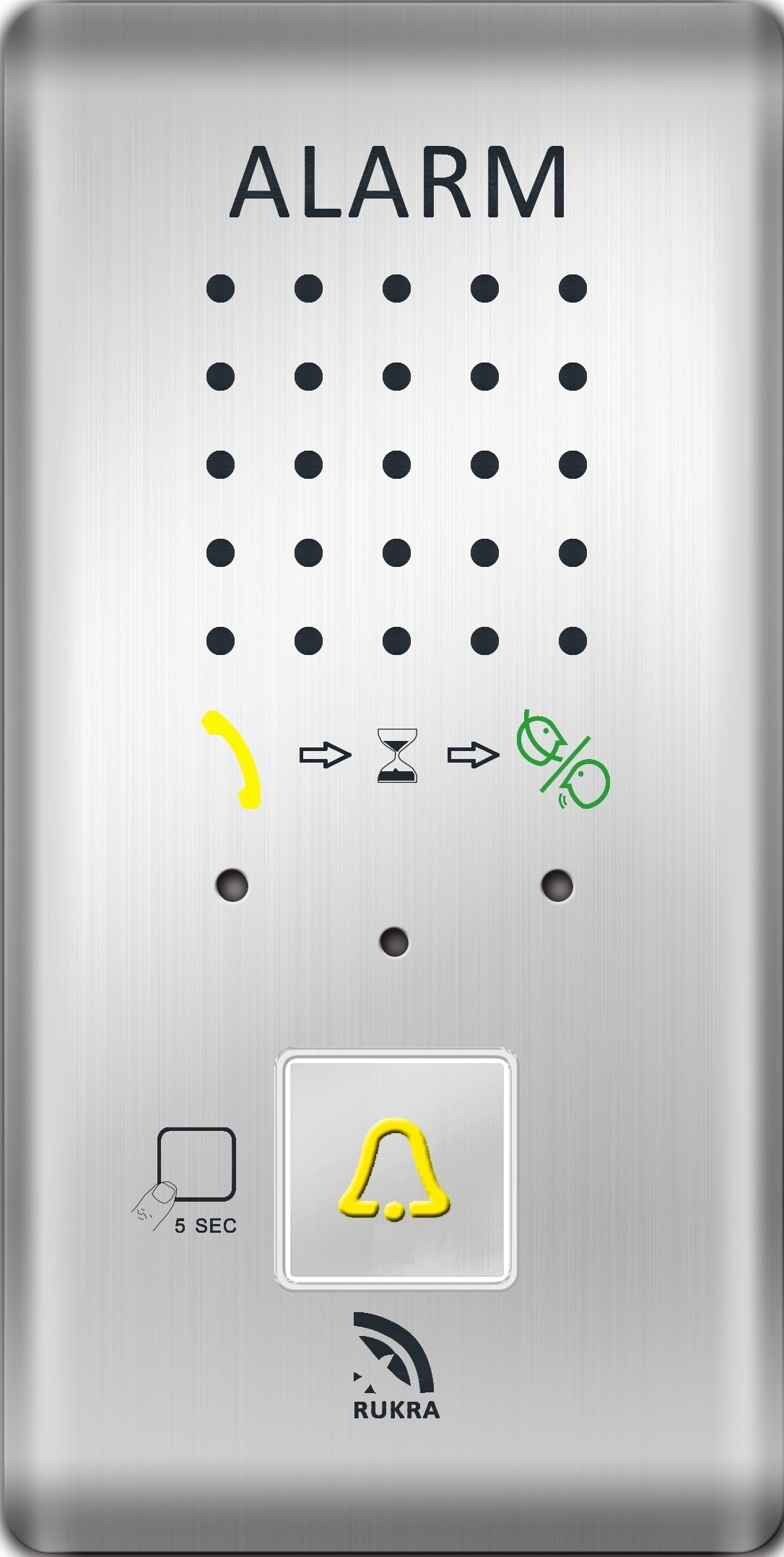

RK-1152 RUKRA Panel surface mount 220x111x30 mm.

RK 1152 RUKRA Panel surface mount 220x111x30

Productinformation

The RUKRA car panels are made of high quality vertically brushed stainless steel.

The alarm button is equipped with two normally open (NO) contacts and also there are yellow LEDs (12-24VDC) present in the alarm button.

The panel is engraved with high-quality color pictograms according to the NEN 81-28.

On request, the car panels can be branded with your own logo or with an alarm button with telephone icon.

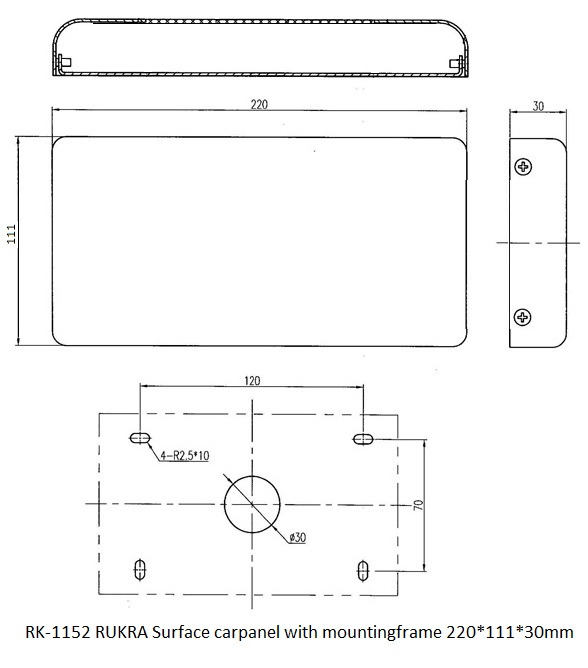

RUKRA surface carpanel with mountingframe RK 1152  Aangezicht en montage RUKRA Alarmknop

Specification

TECHNICALL

• Pictograms NEN 81-28

• Stainless steel 2mm

• Vandalproof alarmbutton

• Alarmbutton with braille

• Alarmbutton 2 x N.O.

• Alarmbutton incl. yellow Led’s 12/24VDC

• Engraving with paint

• Sizes: 220x111x30mm

• Article number: RK-1152

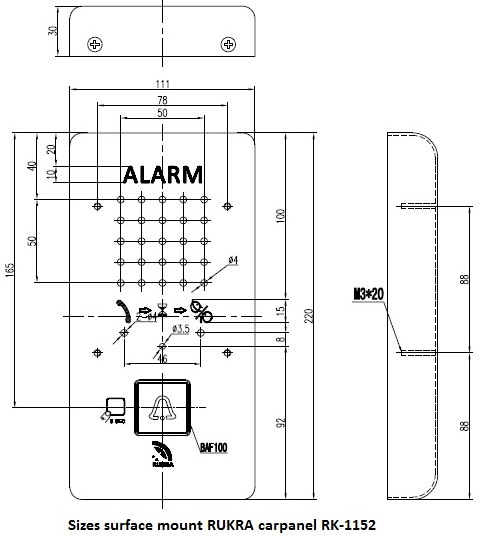

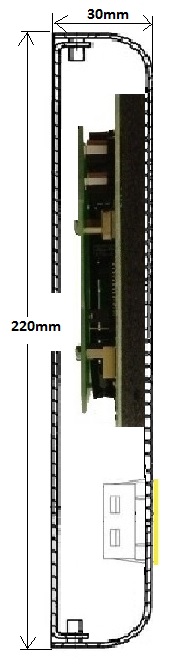

Sizes surface mount RUKRA carpanel RK 1152       Side view Carpanel Surface mount RK1152 220x111x30mm



Option

Alarmbutton with red phone symbol, Articlenumber: RK-2300

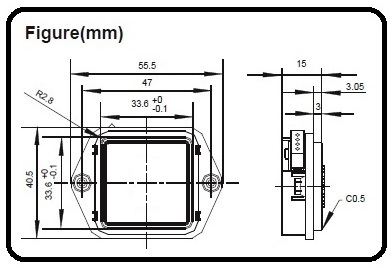

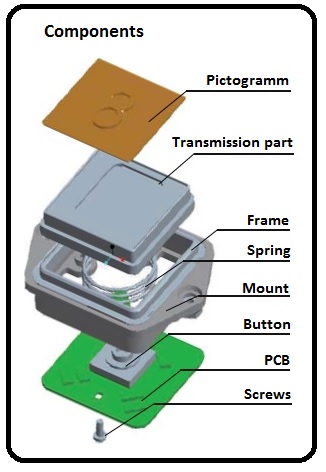

Alarmknop telefoon   Components RUKRA AlarmknopAfmetingen RUKRA Alarmknop
